Overview
The Quad3X is a 3 axis quadrature decoder capable of connecting 3.3V and 5V rotary or linear sensors that output quadrature signals.  USB 2.0 interface provides serial CDC connection to the desktop.  Position sensor data can be streamed or return through query/response as Imperial or Metric data.  Both linear and rotary sensors are supported.

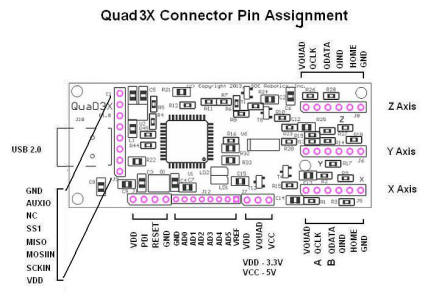

Features
    o  3 Axis linear/rotary quadrature decoder
    o  5V or 3.3V sensor operation
    o  USB serial interface
    o  Green Power On LED for each processor
    o  Two ATxmega32A4U processors
    o  Small form factor (1.75x2.40 in)
    o  5VDC @ 12ma Power input for logic
    o  Board logic runs at 3.3V
    o  Level shifter converts 5V sensor data to 3.3V
    o  Jumper sets sensor voltage – 3.3V or 5V


Related Products
The following products can be used with the Quad6X:

    QUAD6X    6-Axis Quadrature Decode with USB Interface

    MS23          Magnetic Sensor head with 2 micron resolution

    MS25U       Single Axis Magnetic Sensor head with USB Interface

Downloads/Revisions
The following technical Manual, datasheets and software downloads are available.

Technical Documentation:
     Quad3X Technical Brief                               Quad3X Technical Manual.pdf

Setup Files:
     Quad3X Setup Files                                      Quad3X Setup.zip

Sensor Datasheets:
      AS5311 Magnetic Sensor Datasheet      AS5311 Datasheet.pdf
