Overview

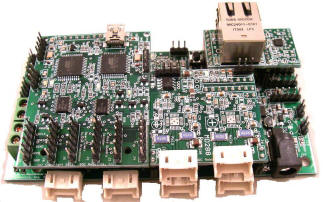

GenX32 is a 6-axis bipolar 2A per phase stepper motor controller/driver combination.  GenX32 accepts six limit switch inputs and has four auxiliary open collector outputs.  The bipolar stepper motor driver based on the popular A4988 driver.  Each of the six A4988's can be individually configured by software for step. Torque is set with a pot.  GenX32 is powered by an external DC wall adapter.  Main board has 4 drivers - 2 additional drivers are on a daughtercard.

GenX32 has onboard Power Mosfets capable of driving 3D printer heat beds and extruders.

GenX32 runs GStep (6-axis G Code controller), GStepH (linear or rotary hexapod controller), GRBL (3-axis open source) or tinyg (6-axis G Code controller with jerk compensation).

Features
    o  AVR32 AT32UC3C2512 processor
    o  2 ATxmega64A4U processors for quadrature input (optional)
    o  USB 2.0 Interface
    o  100BASET Ethernet Interface (optinal)
    o  Bipolar Stepper Motor Controller
    o  2A per phase continuous A4988
    o  6-Axis X, Y, Z, A, B and C
    o  Wave, Half , 1/4, 1/8th and 1/16th Microstepping
    o  Software selectable step mode
    o  Bipolar Stepper Motor Controller
    o  Power Mosfets for heat bed and extruder
    o  Limit switch detection on each axis (optical or contact closure)
    o  Stepper motor input voltage 7-35VDC
    o  Transient Voltage Suppression (TVS) on each driver output
    o  4 Open NPN outputs
    o  I2C TWI Communications Port
    o  Small form factor (3.85x3.00in)

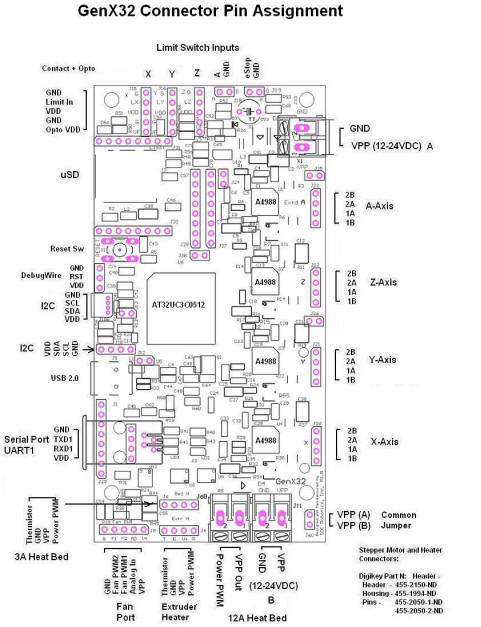

Component Layout

Description
GenX32 is a high performance, 6-axis stepper motor controller designed to control a hexapod.  GenX32 is powered either by the USB 2.0 connection or the 24-36VDC stepper motor power input.

Downloads/Revisions
The following technical datasheets, hardware and software downloads are available.

      GenX32 Technical Reference Manual ->      GenX32 Technical Reference Manual.pdf
      MM160 Technical Reference Manual ->      MM160 Technical Reference Manual.pdf
